fiber laser marking machine engrave logo on metal phonecase iphone keychain logo badge emblems dog tag letter opener award

FOB Reference Price:Get Latest Price
$3,500.00 - $7,500.00 / Sets | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Laser Type:
Fiber Laser
Power(W):
10W/20W/30W/50W
Working Accuracy:
0.01mm
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Marking
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
EZCAD Software
Place of Origin:
Shandong, China
Brand Name:
shenhui
Model Number:
SH-F10
Certification:
CCC, CE, ISO, SGS, BV FDA
Product name:
Fiber Laser Marking Machine
Laser power:
10W/20W/30W/50W
Laser power supply:
Raycus/Max
Name:
SH-F10
Keywords:
Metal Fiber Marking Machine
Function:
Metal Marking
Type:
Fiber Laser Marking Metal
Model:
sh-f10
Software:
Original JCZ EZCAD
Color:
Blue
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Week
Packaging & Delivery
Packaging Details
plywood case.
Port
qingdao tianjin ningbo shanghai guangzhou shenzhen
Lead Time :
Shipped in 5 days after payment
Video Description

Hot sale Fiber Laser metal Marking Machine

1. Raycus / Max  China best brand laser source

2. High contrast / Edge neat / Smooth surface / Not affected by heat
3. Warranty for 2years
4. Rotary supported
5. 100000 hours long lifetime / No consumables / Free of maintenance

 Applicable Feature of steel marking machine

1. 100000 Hours Long lifetime, No consumables, Free of Maintenance.
2. Best Marking Effect, Deep Marking, Higher Accuracy.
3. No need to adjust the laser path, Use Integrated Air Cooling.
4. Low Power Consumption, Small and compact.



Applicable Materials

All metals and some non metal material



Technical Parameters

Laser Type

Raycus / Max

Laser Power

10 W//20W/30W/50W (optional)

Max Marking Speed

300 characters/s, height of character 1mm

Graphic Format Supported

PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF

Beam Quality

<2m2

Power Stability(8h)

<±1% RPM

Pulse Repeat Frequency

20-60KHZ

Whole Machine Power

<800W

Mini Line Width

50um

Mini Character

3mm

Laser Wavelength

1064nm

Oscillating Mirror Area

110x110mm / 200*200mm /300x300mm (optional)

Cooling Way

air cooling

Working Voltage

220V±10%/50HZ

Working Temperature

5°C-35°C

Weight

60KG

Package Dimension

800x970x700mm

Package

plywood case

Detailed Images

Raycus / Max laser source

Lens

Red pointer

Emergency stop / Mainboard switch / Scanner switch / Laser switch

Ruler Scale

400mm Lifting Handle

Machine Accessory

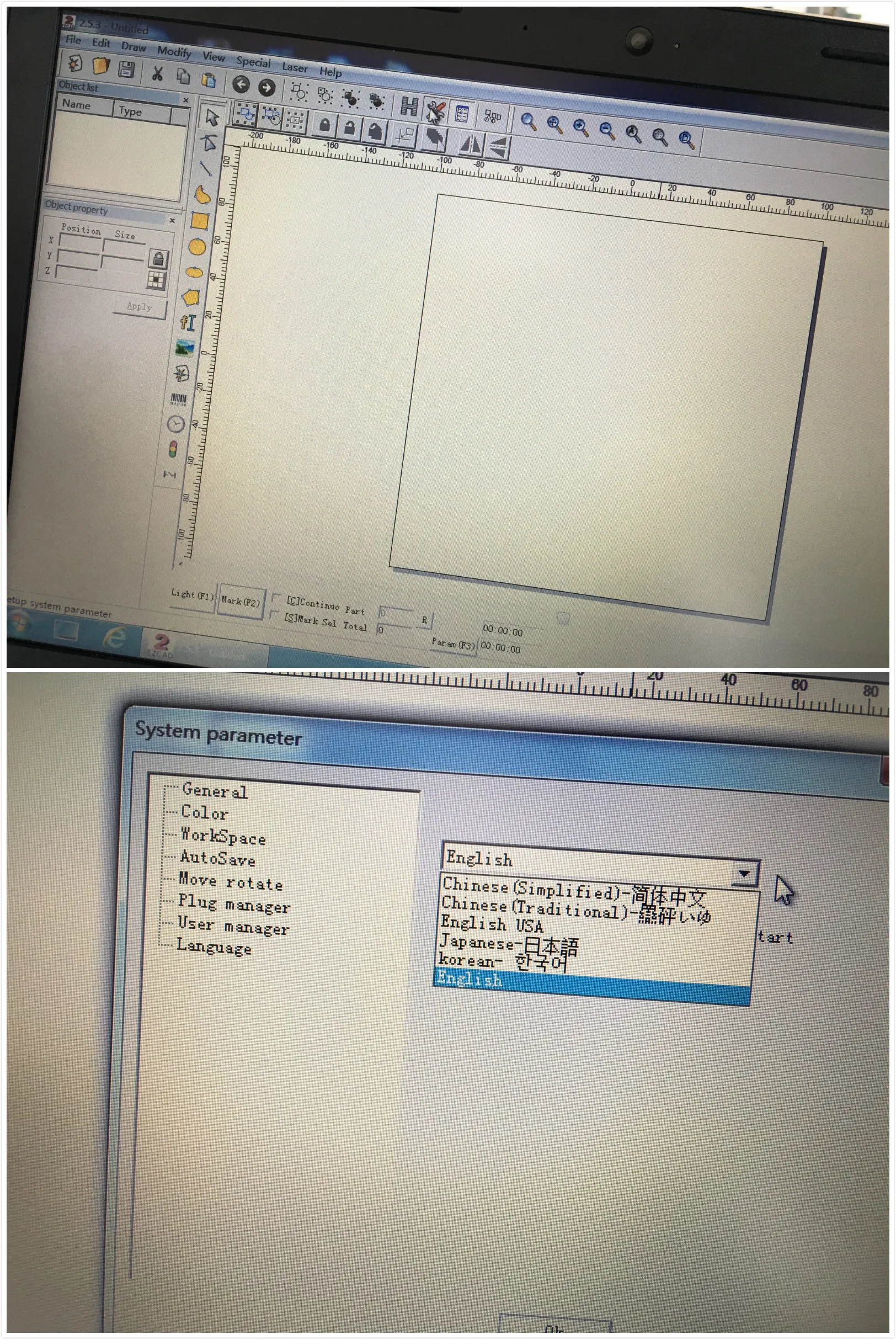

Famous brand EZCAD Original / English version

Powerful editing function /High stability  / Easy to use

Optional Parts

Raycus / Max laser source / Rotary device / Laptop

Samples Compare

Ours sample High contrast / Edge neat / Smooth surface / Not affected by heat

Laser marking machine classify

CO2 marking machineNon-metal,fabric,leather,wooden packing,paper packing,acry;ic pipe,PET,plastic,som of the paint layer,ceramics,glass
Fiber marking machineOrdinary metal,rare metal and alloy,alloy powder,ceramic materials,after surface treatment of metal,oxides,plastics.polymers 3M label paper.
Portable marking machineThis device can print the minium character height is 0.8mm-18mm,suit for cable,auto parts,cosmetics,pharmaceutical and some industries which need micro character in small product.

Our company

We are professional manufacture that OEM machines for others small factory and Traders !

Over 20years export experience.

12 years of Alibaba gold suppier.

Factory size is 33000M2

Shenhui had keeping exported to many countries,Export quantity 1200sets every month.

Warranty

(1) .The warranty of machine is 2years

(2).The warranty is dated from EX factory date

(3) .During warranty, we will send the parts to you for repairing or replacing

(4) .If there's any problem in the future, we will give you tech support by mail,Teamviewer, or Skype to fix it.

After-sales service

No matter what kind of product problems, our customer service staff will deal with it as soon as possible.We offer online service 24 hours all day trademanager, Email What's app and so on. Please fell free to contact us .

Shipping&Packaging

Payment TermsAlibaba trade assurance / T/T / Western union / Paypal / L/C / Credit card
Production Time

Our factory will start production after first payment confirmed .We will send machines after full payment confirmed.

Way of Packing

1.Packed the laser machine with PE film for clearing and damp proofing

2.Put the laser machine in carton safety and clashing.

3.Pack the machine with standard plywood case for export.

4.Stencil the shipping mark on all of the cases .

Way of ShippingWe supported shipping by Express (DHL/TNT/UPS/FEDEX) / Air / Sea /Railway
