laser cut acrylic cake toppers machine laser cutting machine for cake topper

FOB Reference Price:Get Latest Price
$2,200.00 - $3,400.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Samples:
Report Suspicious Activity
Overview
Quick Details
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood, coated metal
Laser Type:
CO2
Cutting Area:
900*600mm
Cutting Speed:
0-40000mm/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Files which CoreDraw,Photoshop and AutoCAD can identify
Application:
Laser Cutting
Place of Origin:
Shandong, China
Brand Name:
SHENHUI
Model Number:
sh-g690
Certification:
CE, ISO, FDA
Condition:
New
CNC or Not:
Yes
Control Software:
Ruida
Cooling Mode:
Water Cooling
Cutting Thickness:
0-20mm depend on different Materials, speed and power
Type:
Co2 laser
Laser power:
60W/80W/100W/130W (optional)
data transfer:
computer/U disk offline
application:
Engraving and cutting
Laser tube:
Co2 Laser Tube
Compatible Software:
CorelDraw AutoCAD directly output
worktable:
motorized up/down
long material:
front and back door for long material
accessories:
all necessary accessories is including
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case for laser cut acrylic cake toppers machine laser cutting machine for cake topper
Port
qingdao /Guangzhou/Yiwu
Lead Time :
Shipped in 15 days after payment
Video Description

laser cut acrylic cake toppers machine laser cutting machine for cake topper





Product Description




 Product overview

laser cut acrylic cake toppers machine laser cutting machine for cake topperlaser cut acrylic cake toppers machine laser cutting machine for cake topper



Acrylic Wood cutting writing engraving laser machine pricelaser cut acrylic cake toppers machine laser cutting machine for cake topperlaser cut acrylic cake toppers machine laser cutting machine for cake topper

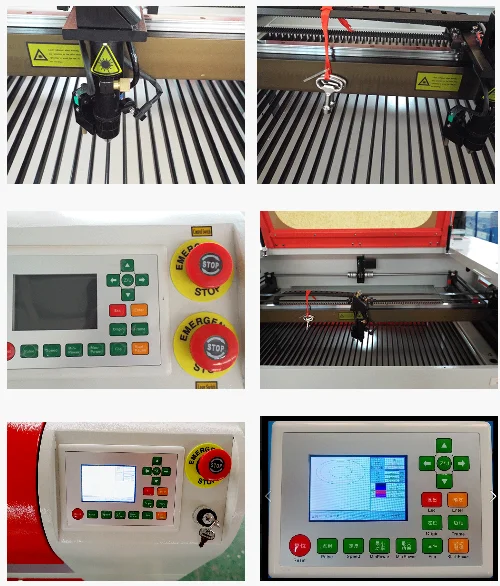

configuration list

laser cut acrylic cake toppers machine laser cutting machine for cake topper



configuration list

Working area 60*90cm

Single /double laser head

EFR/Reci laser tube

Aluminium blade+Honey comb worktable

Laser head with red dot pointer and air assist

Front and back door for long material

Motorized/Autofocus up and down worktable

RDC6442G control system

PMI/HIWIN guide rail

3M drive belt

3 phase stepper motor and leadshine driver

imported focus lens

Coreldraw/AutoCAD output directly

USB port,DSP high-speed card,LCD display panel,support offline



 laser cut acrylic cake toppers machine laser cutting machine for cake topper





Engraving Materials: acrylic ,Wood, plastic, glass, cork, veneer, rubber, jade, , fiberglass, marble, corian, leather, fabric, cloth, coated metals, anodized aluminum, ceramics, tile, mylar, delrin, melamine, paper, pressboard, matte board and more.



Cutting Materials: Wood, acrylic, plastic, corian, delrin, cloth, leather, melamine, paper, pressboard, matte board, mylar, rubber, veneer, cork and more





Technical parameter

Laser power 80W/100W/130W/150W(optional)
laser typehermetic co2 glass tube
power supplyAC220V ±10% /AC110V ±10%
working area600mm×900mm
max moving speed 0-40000mm/min
worktable

honeycomb worktable+ aluminium blade



location precision<0.01mm
Min shaping Charactercharacter:2×2mm,letter:1×1mm
Operating Temperature5°C-35°C
Resolution Ratio4500dpi
Control ConfigurationRD6442G
Data Transfer interfaceUSB (offline)
System Environmentwindows2000/windows XP/ Vista/win7/win8
Cooling Waywater cooling and protection system
Graphic Format Supported

The Files which CorelDraw.Photoshop.AutoCAD Can identify

(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,

CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,

FMV,GEM,CMX)

Compatible SoftwareCorelDraw, AutoCAD
Cutting Thickness0-20mm(depends on different materials)
Color Separationseparation of cutting up to 256 colors
Sloping EngravingYes, slope can be designed discretionarily
Cuts off the Water Supply the Protectionyes
Machine Dimension1.50*1.35*1.09m
Package Dimension1.61*1.46*1.29m
Net Weight300kgs
Gross Weight395kgs
Optional PartsCW3000/CW5000 chiller, cylinder/irregular  rotary attachemnt
sample display

 laser cut acrylic cake toppers machine laser cutting machine for cake topper

laser cut acrylic cake toppers machine laser cutting machine for cake topperlaser cut acrylic cake toppers machine laser cutting machine for cake topper







Packaging & Shipping

laser cut acrylic cake toppers machine laser cutting machine for cake topper

laser cut acrylic cake toppers machine laser cutting machine for cake topper





different  material cutting thickness for reference

Our Services



(1). we will provide you one year warranty. In the first year, if any problem, we will exchange new parts for you and we pay for the dhl fee(not include the laser tube and mirrors consumables.).



(2). to better serve you and assist you conveniently, we will provide you online technical support. If you have any question, you can discuss with our technician online by Skype, Whatsapp Teamviewer, etc.



(3). we also provide onsite service. If you need, we will send our technician to your house if only you help us with getting the visa and bear the costs like flight tickets, food, hotel, etc.



CONTACT US

If be interested in the laser machine

or have any question or need more information , please feel free t contatc us in anytime.

laser cut acrylic cake toppers machine laser cutting machine for cake topper



more model

Shenhui supply 30*20cm-130*250cm laser engraving cutting machine, from 40W-150W,

The working size can be customized, and machine body can be customized for agent.



If you are interested in one model, please feel free to contact us.



laser cut acrylic cake toppers machine laser cutting machine for cake topper



ModelWorking arealaser tube power (Co2/fiber) working video

SH-K40

ShK3030

SH-K3040

300*200mm

300*300mm

300*400mm

40w/50whttps://youtu.be/neecTA4LbJ0
 SH-G350   500*300mm 40w/50w/60whttps://youtu.be/e-mgCov0Mp4
 SH-G460   600*400mm 50w/60w/80w/100W https://youtu.be/AEjqtZyFtUQ
 SH-G570  700*500mm 50w/60w/80w/100W https://youtu.be/ufZFgx5Lg8o
 SH-G690 900*600mm 60w/80w/100w/130w/150w https://youtu.be/mU_-wzNnSJQ
 SHG1060  1000*600mm 60w/80w/100w/130w/150w https://youtu.be/A0gQ85NVnIY
 SH-G1290   1200*900mm 60w/80w/100w/130w/150w https://youtu.be/-2KPkbLvpvk
SH-G1390  1300*900mm  60w/80w/100w/130w/150w https://youtu.be/hk4qWBSW-X8
SH-G1610  1600*1000mm 80w/100w/130w/150w https://youtu.be/w-MjMNnRu5o
SH-G2513 2500*1300mm 80w/100w/130w/150w https://youtu.be/xWZecUp1KGM
SH-G30153000*1500mm 80w/100w/130w/150w  https://youtu.be/hk4qWBSW-X8



SH-F10/20/30

110*110mm

200*200mm

300*300mm

10W/20W/30W fiber

https://youtu.be/EuKv1UrDXEc

https://youtu.be/ye78Zh111tA

https://youtu.be/9N-xMNfHaBQ
