most popular 5030 3050 leather ceramic wood rubber stone plywood plastic laser engraving machine laser cutting machine

FOB Reference Price:Get Latest Price
$1,400.00 - $2,000.00 / Sets | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood, non-metal materials
Laser Type:
CO2
Engraving Speed:
1000mm/s
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:
Laser Engraving
Engraving Area:
500*300mm
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Place of Origin:
China
Brand Name:
Shenhui
Model Number:
SH-G350
Dimension(L*W*H):
810x510x260mm
Certification:
CE, ISO, SGS, FDA BV
Laser power:
40W
Name:
mini Cnc Laser Engraving Machine
Product name:
C02 Laser Engraving Cutting Machine
Laser tube:
Glass Sealed CO2 Laser Tube
Type:
Water Cooling CO2 Laser Engraving Machines
Keywords:
50W Laser Engraving Machine
Model:
sh-g350
Software:
CorelLaser laser cut laser works
Function:
Cutting Engraving Non-metal Materials

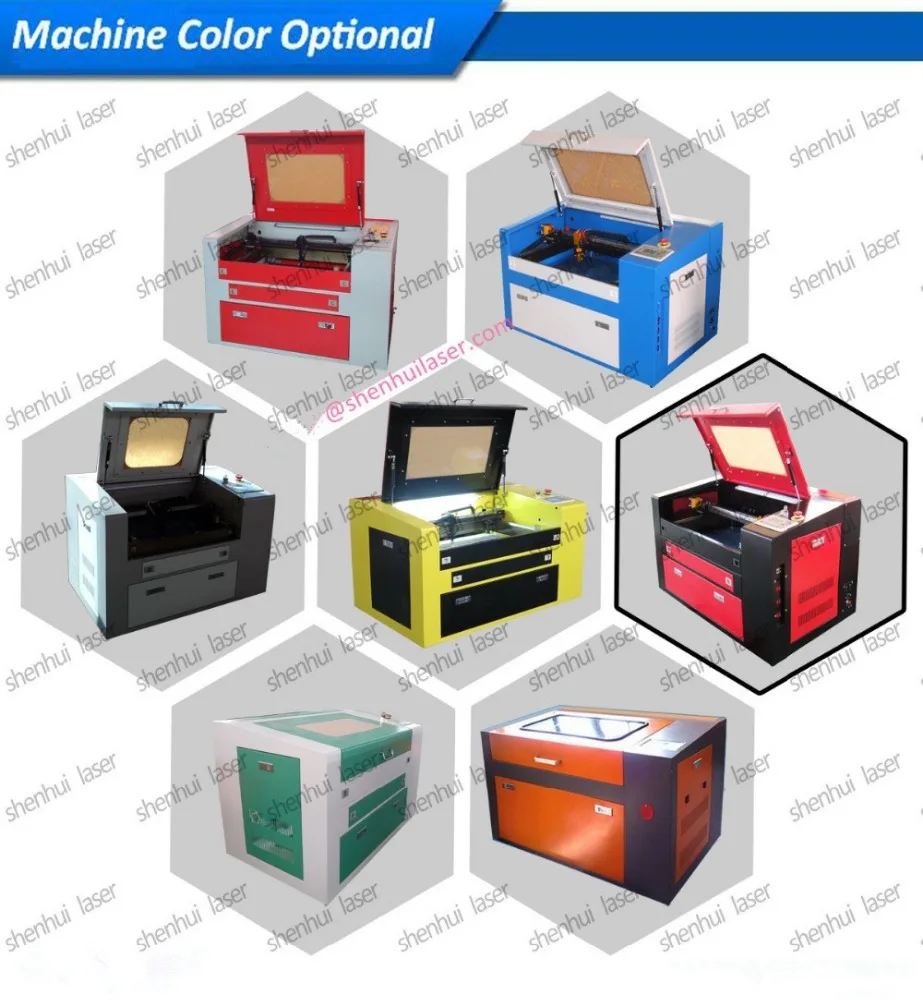

Color:
any color oem supported
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Week OEM laser engravingmachine please check again after down payment
Packaging & Delivery
Packaging Details
Plywood case.
Port
Qingdao Shanghai Shenzhen Guangzhou Ningbo Tianjin
Lead Time :
3-5 days after payment confirmed
Product Description

Ebay hot sale SH-G350 Laser Engraving and Cutting Machine

With CE FDA BV ISO Certificate


Product Application
SH-G350 Laser Engraving and Cutting Machine with a high precision 50W shanghai tongli CO2 laser tube Mainly used for engraving and cutting  of small artistic works . Such as engraved portraits , badges , breast cards and various engraved packages .With the Cylinder Rotary Attachment,you can engrave any cylindrical object,such as cups,brush pot,musical instrument and so on
Applicable Materials
Plastic ,Wood , Jade ,Crystal , Rubber , Stone ,Plexiglass ,MDF , Carbon and others non-metal materials .
Technical Parameters
Model
SH-G350
SH-G460
SH-G570
SH-G690
SH-G1290
Laser Power
45W / 50W / 60W / 80W / 90W /100W / 20W /150W / 180W  ( Optional )
Laser Type
Sealed CO2 Glass Laser Tube
Working Voltage
AC220±10% 50HZ/AC110±10% 60HZ
Working Area
(Y-X Axis)
500*300mm
400*600mm
500*700mm
600*900mm
1200*900mm
Engraving Speed
1000mm/s
EngravingThickness
0-20mm
Cutting Speed
1000mm/s
Cutting Thickness
0-30mm (Depends on the materials )
Working Table
Manual or Motorized Up and down worktable / Fixed worktable  (Optional )
 Aluminum knife and Honey comb (Optional )
Repeated Positioning Accuracy
±0.01mm
Resolution ratio
≤4500DPI
System Supported
Windows 2000/ Windows XP/Vista /Win7
Compatible Software
CorelDraw / AutoCAD / Photoshop / Laser CAD etc
Graphic Format Supported
AI / BMP / DST / DWG / DXF / DXP / LAS / PLT etc
Cooling Mode
Water cooling
Data transfer interface
USB
Color separation
Separation of cutting up to 256 colors
Sloping engraving
Yes,slop can be designed discretionarily
Water sensor/ Red dot /LED Light
Yes

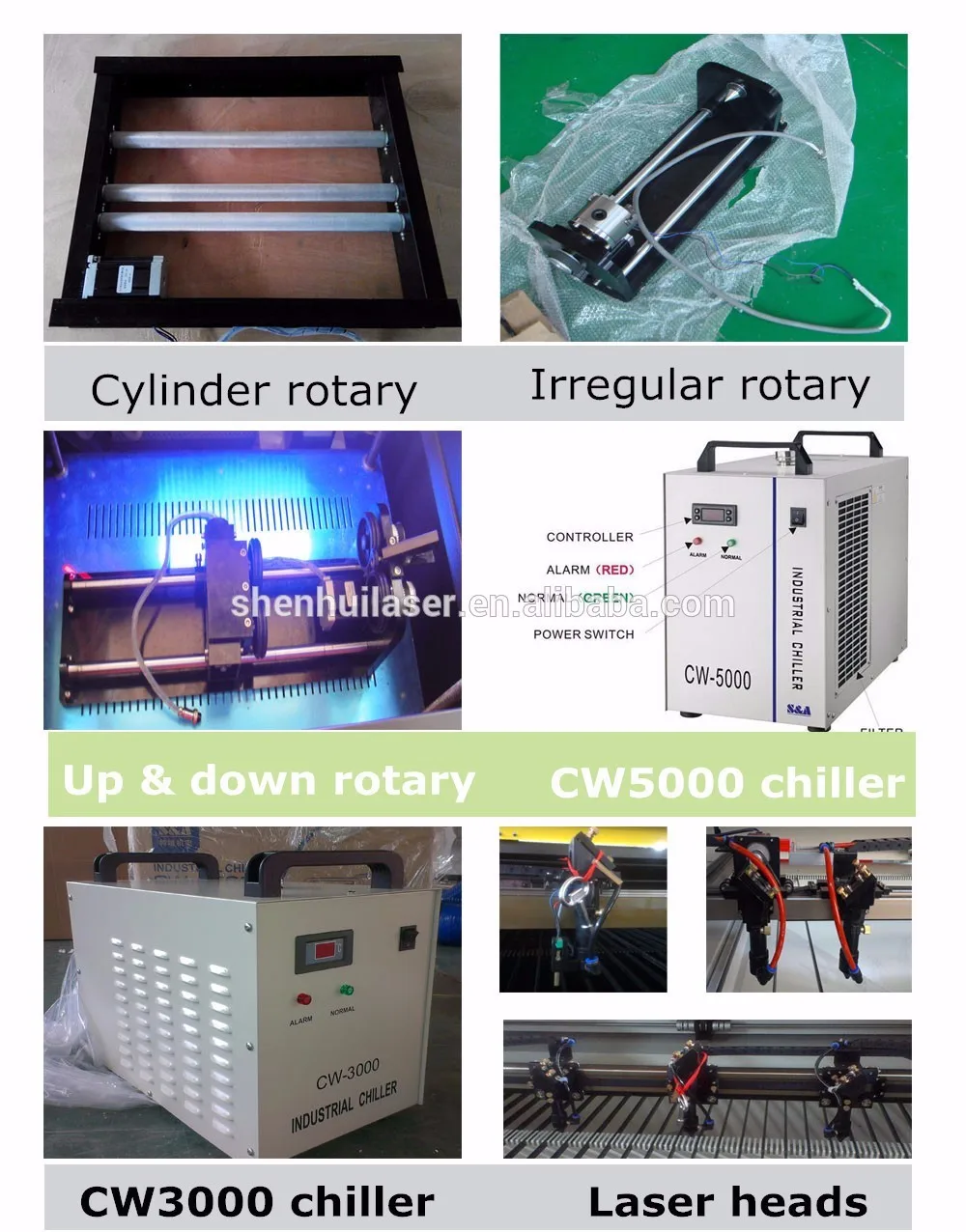

Optional parts

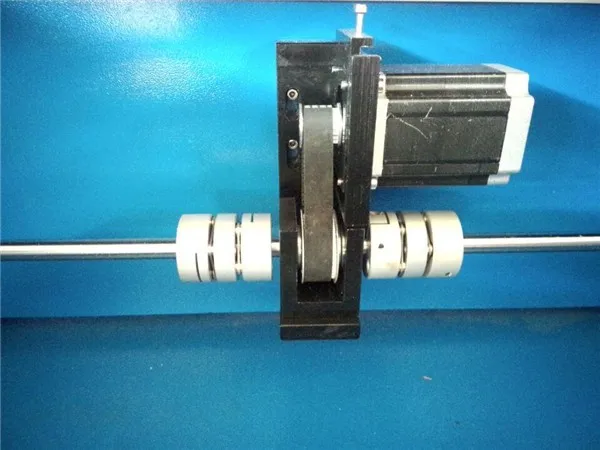

Double laser head / High-grade cooling system / Cylinder rotary / Irregular rotary
Machine size
103*65*57
         cm
119*100*105
         cm
129*110*107
         cm
150*120*109
         cm
179*150*109
         cm
Plywood Package size
112*75*68
         cm

132*111*127          cm
140*120*130          cm
166*132*129          cm
190*163*128          cm
Gross weight
115KGS
180KGS
220KGS
340KGS
400KGS

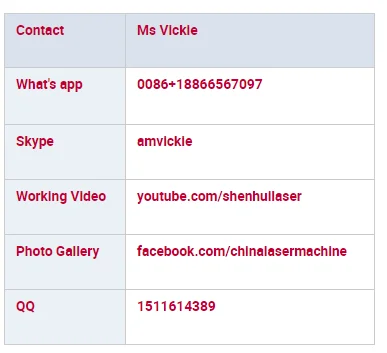

Contact
Ms Vickie
What's app
0086+18866567097
Skype
amvickie
Working Video
youtube.com/shenhuilaser
Photo Gallery
facebook.com/chinalasermachine
QQ
1511614389

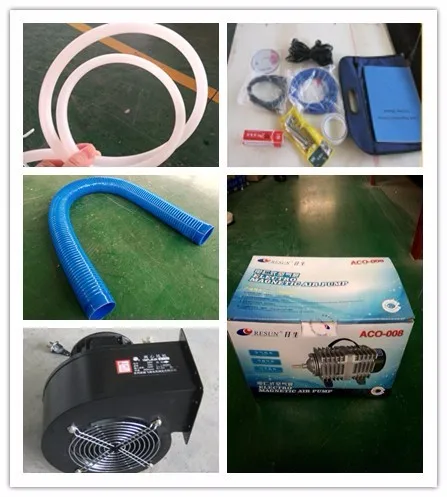

SH-G350D Standard Packing List
Machine parts
Tools bag
Name
Amount
Units
Name
Amount
Units
Water pump /CW3000/CW5000
(Optional)
1
set
Manual book
1
pcs
Air pump
1
pcs
Software CD
1
pcs
Power line
1
pcs
USB line
1
pcs
Smoke pipe
2
pcs
Silicone
1
pcs
Water pipe
1
pcs
Focus rular
1
pcs
Air pipe
1
pcs
Paper for adjusting laser light way
1
pcs
Inner hexagon spanner
1
set
Plugs or Socket
1
pcs

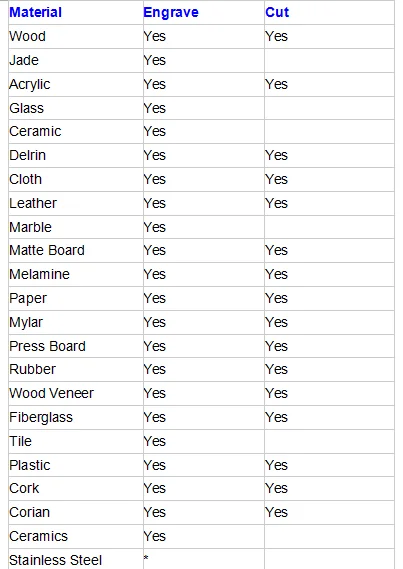

Engrave and cut Material Details
Inquiry
Detailed Images

1. PMI Liner guide Rail

From Tai Wan

high speed and precision

high load capacity and rigidity

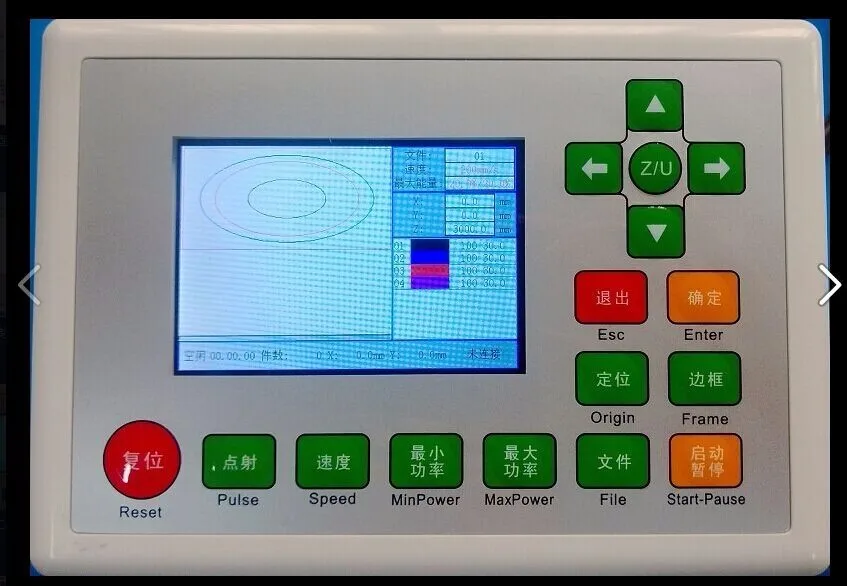

2. Control panel

Name: Laser work 6442G LCD Panel
Demonstrate work process clearly.

Convenient to operate and view.

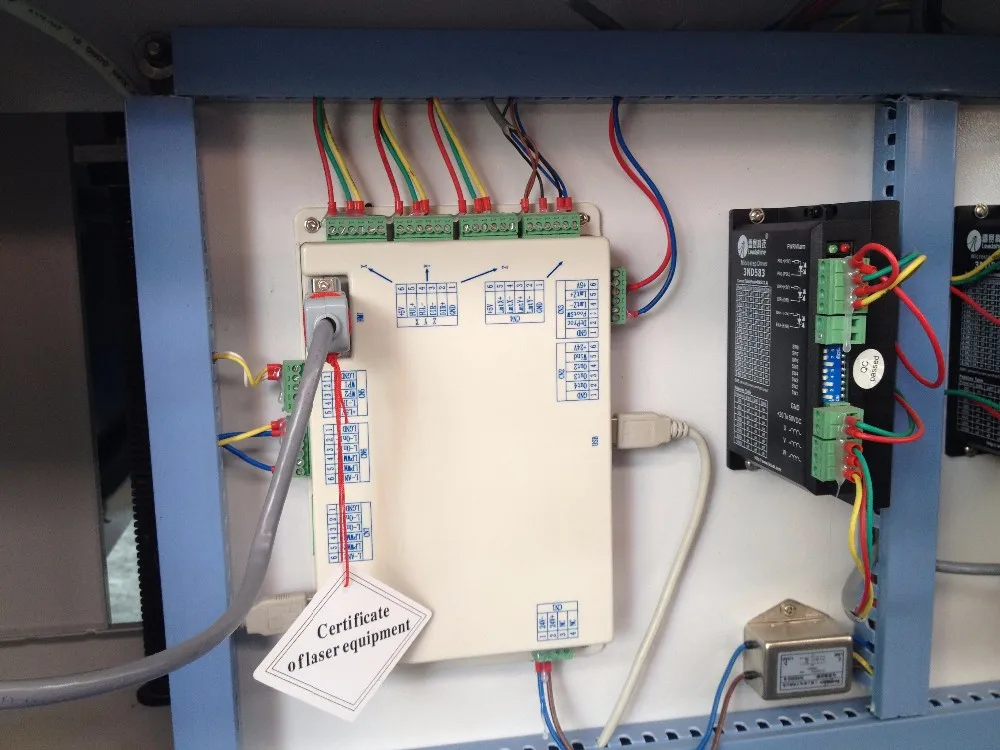

3. Control Mainboard
Name : RD Laser work
Support fast engraving and cutting with shorest path selection
Easy to operate

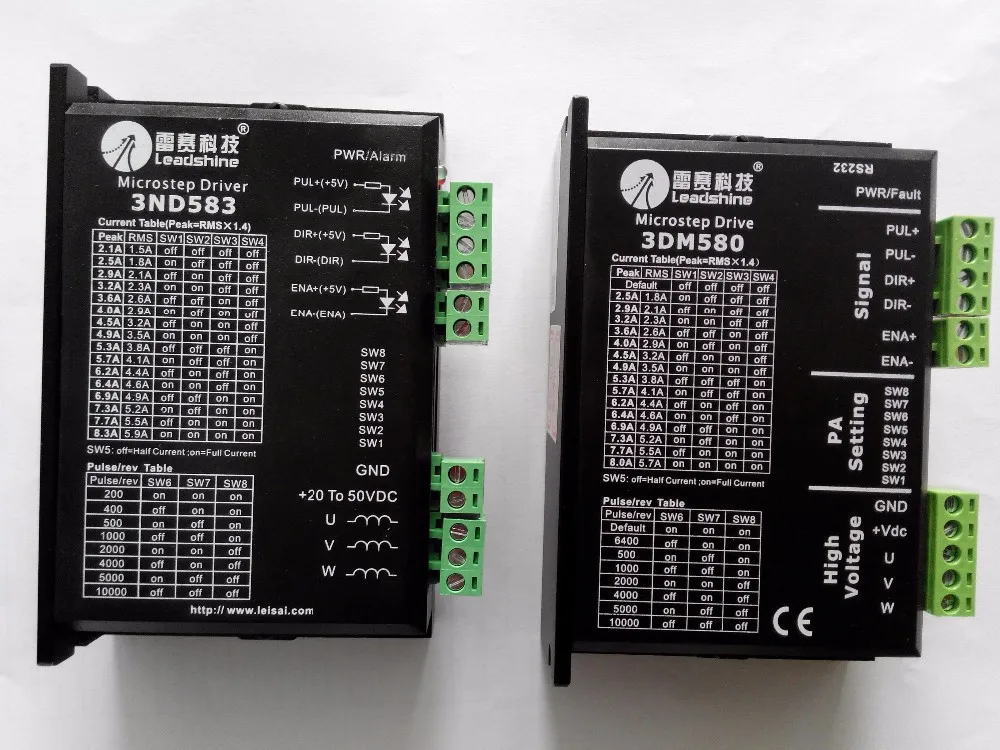

4. Leadshine Driver

low-vibration

low-noise

high-precision and high-velocity

5. Stepper Motor.

High Speed
High torque

High precision

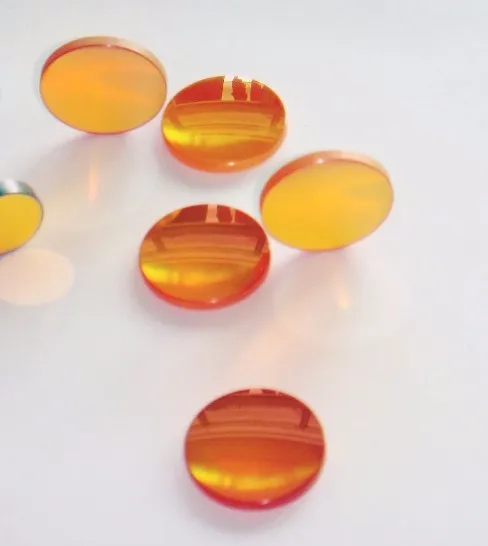

6. Lens
Various lens to choose
40mm /  50.8mm / 63.5mm
1.5inch / 2.0inch / 2.5inch
and so on

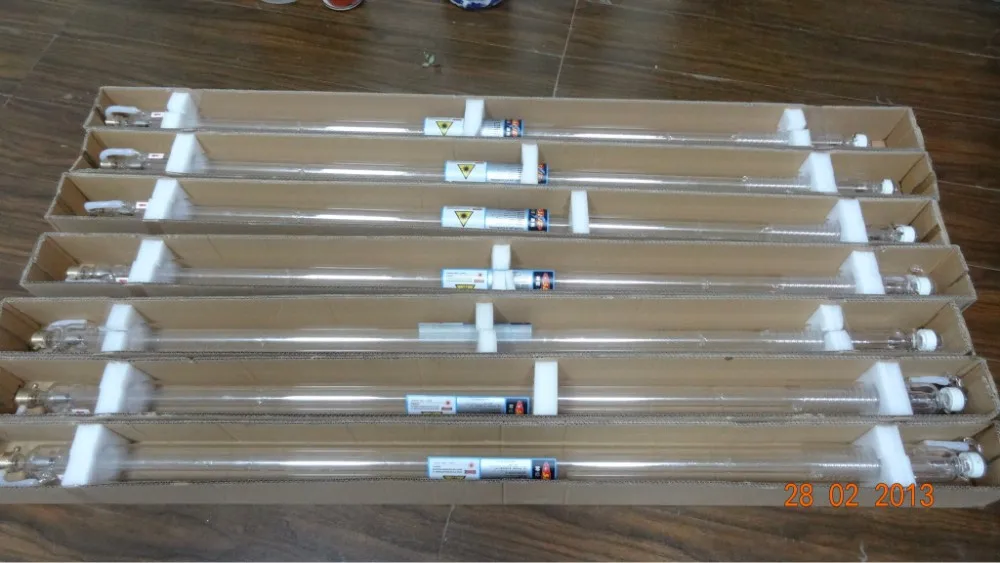

7. Laser tube .

40W/45W/50W/60W/80W/90W/100W/120W/150W/180W
Brand :  Beijing Reci
               Beijing EFR
              Shanghai  Tongl

8. Power supply.

40W/45W/50W/60W/80W/90W/100W/120W/150W/180W
Brand : Beijing Reci / Beijing EFR
Shanghai Tongl / Ji Nan Hongyuan

Others Optional parts
Inquiry & Contact
Packing & Delivery

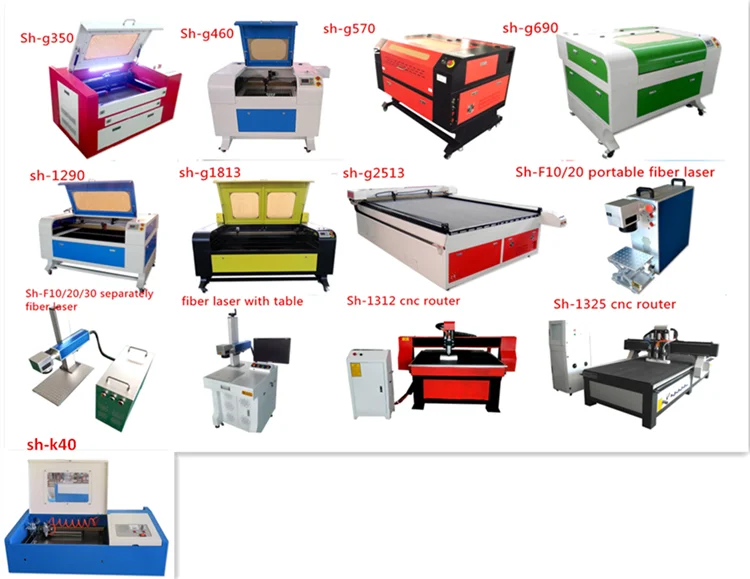

Related Products
