stainless steel engraving machine laser engraving
-
>=1 Sets
$2,790.00
- Model Number:
- SH-F20
- Shipping:
- Support Sea freight
- Lead Time:
-
Quantity(Sets) 1 - 10 11 - 20 >20 Est. Time(days) 7 15 Negotiable
- Customization:
-
Customized logo (Min. Order: 1 Sets)Customized packaging (Min. Order: 1 Sets)
More
Graphic customization (Min. Order: 1 Sets) Less
- Samples:
- Applicable Material:
-
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood, Cooper silver hard alloy
- Laser Type:
-
Fiber Laser
- Engraving Speed:
-
7000mm/s
- Graphic Format Supported:
-
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
- Application:
-
Laser Engraving
- Engraving Area:
-
110*110mm 200*200mm 300*300mm
- Condition:
-
New
- CNC or Not:
-
Yes
- Cooling Mode:
-
Air Cooling
- Place of Origin:
-
Shandong, China
- Brand Name:
-
Shenhui
- Dimension(L*W*H):
-
840*400*740mm
- Certification:
-
CE, ISO, SGS, FDA
- Product name:
-
Fiber Laser Marking Machine
- Laser power:
-
10W 20W 30W 50W(optional)
- Cooling system:
-
Air Cooling System
- Laser source brand:
-
Max/Raycus
- Marking line width:
-
0.01-0.1mm
- Software:
-
Ezcad(in English)
- Working voltage:
-
AC110V/220V
- Min letter:
-
0.15mm
- Repeatable Accuracy:
-
0.001mm
- Keywords:
-
Fiber laser marking machine for metal and non-metal material
- After-sales Service Provided:
-
Engineers available to service machinery overseas
- Supply Ability:
- 1000 Set/Sets per Month
- Packaging Details
- Plywood case for laser marking machine
- Port
- Qingdao/Shanghai/Shenzhen
- Lead Time :
-
Quantity(Sets) 1 - 10 11 - 20 >20 Est. Time(days) 7 15 To be negotiated

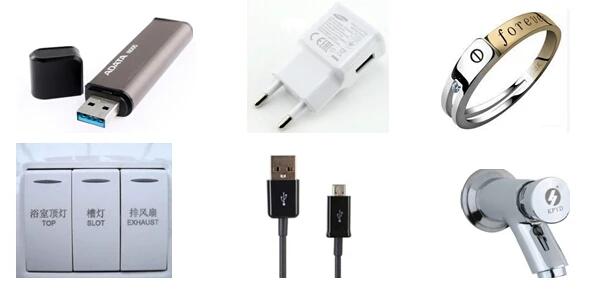

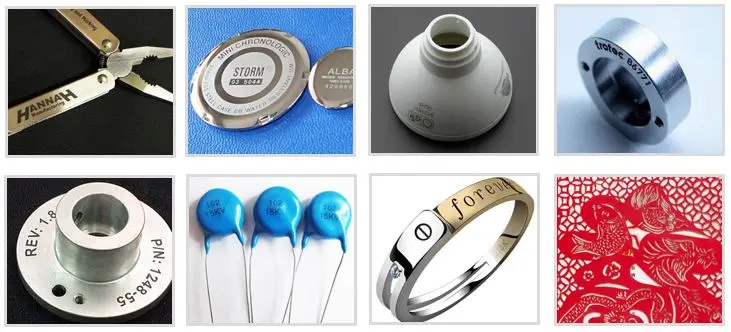

Applicable Industry:
Mainly used to mark on various plastic buttons and electric devices, to mark code on CMOS
chip, color paper and food package. It can also be used in the scope with high requirements,
such as clock, jewelry, module, bitmap marking etc..
Introduction:
Fiber laser marking machine is the new generation marking system developed by our company
with advanced laser technique,it adopts fiber laser to output laser an achieves to marking
function after high speed scanning oscillating mirror system. It has higher photoelectric transfer efficiency. This machine adopts air cooling way and the whole machine is small, the out put beam is qualified, high reliability.

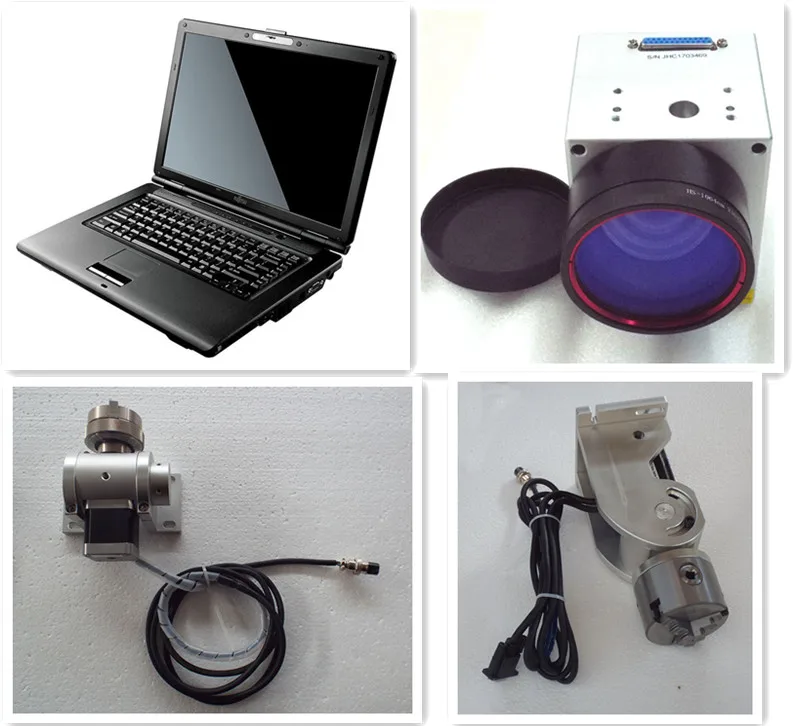

Fiber laser marking machine pictures
1. Imported high speed galvo scanner. (China brand optional)
2. Red dot positioning, working area: 110*110mm 200*200mm 300*300mm
Max/Raycus laser module 10w/20w/30w/50w(for choice)
Technical Parameters
Type: SH-F10/20/30/50


Advantages:
1.Imported high speed galvo scanner. (China brand optional)
2.High precision with repetition as tiny as 0.2mm.
3.Fiber laser marking machine can make deep marking up to 1.0mm on stainless steel.
4.Fast marking speed with red dot pointer
5.Simple and convenient operation, easy to learn and handle.
6.Create intelligent designs.
7.Stable structure, little vibration during work.
8.Adopting Air Cooling way.
9.Run without maintenance.
10.No consumables: Fiber laser machine can be used for 8-10 years without any consumables.
11.Low power consumption: low cost, only 0.5kw per hour.
12.Perfect performance, 24 hours continuous working ability.
13.Long working life.
